FITFIRE® inflatable flues
The 100% Made in Italy certified solution that offers simplicity and fast installation for the non-destructive rehabilitation of flues.
The innovative FITFIRE® system makes it possible to permanently restore obsolete flues. This solution allows you to achieve custom results in any context without replacing pipes or breaking walls.
With FITFIRE® you can be certain that, at the end of the work, you will have a flue that is as good as new, with guaranteed durability and fully compliant with current regulations.
Continue reading to discover in detail all the advantages, features and revolutionary installation methods: FITFIRE® is the only inflatable flue!
Already decided? Then do not hesitate to contact us: we are here to help all installers and distributors.
System advantages
Fast installation, one third of the time compared to traditional systems
No masonry work required for installation
High-quality technological insulating materials
Self-supporting structure without the need for anchoring
Obtain a new flue with a monolithic structure without joints
Ideal for
apartment building systems and large facilities
Certifications
The of FITFIRE®
Simple, Fast, Certified
The all-Italian solution for rehabilitating flues of traditional boilers (non-condensing).
Fast installation:
compared to standard flue rehabilitation and relining systems, FITFIRE® requires only one third of the time to complete!
Minimal disruption:
no specific masonry work is required. This means less work and no dust during installation.
New monolithic flue:
you obtain a configuration without joints or potential leakage points.
Quality insulating material:
improves flue gas velocity and supports discharge.
Self-supporting material:
no anchoring is required.
The of FITFIRE®
T160 P1 D2 O40; T200 N1 D2 O40 (EN 1443:2003)
CE certified product
Fire reaction class: B – s1, d0
Flow resistance: r = 0.00035 m
Thermal resistance: 0.17 m²K/W
Compressive strength: 10.5 MPa
Tensile strength: 150 N/mm²
How FITFIRE®
A guarantee for professional installers:

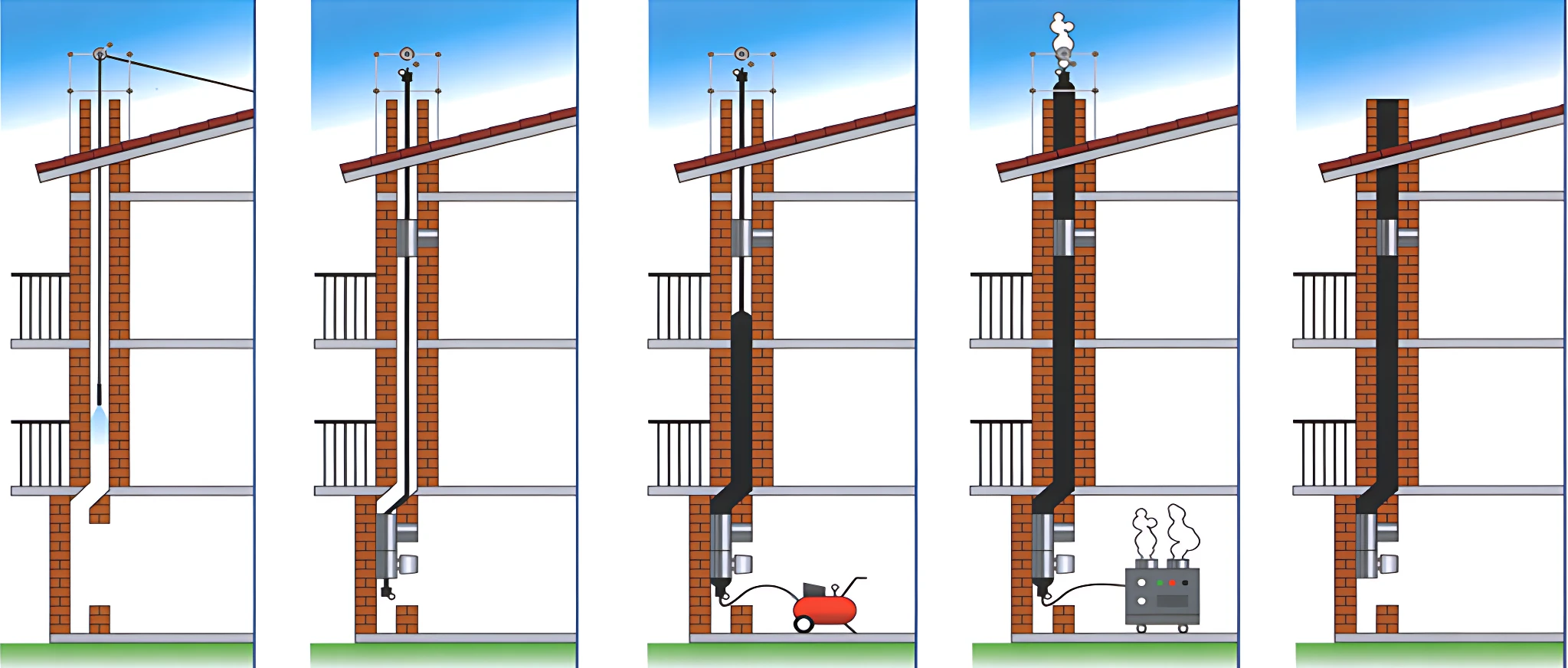

custom results in 5 steps
- 1. Video inspection > 2. Application of the lower and upper sleeve with pressure gauge > 3. Forced air injection > 4. Steam injection > 5. Cutting of excess liner.
Your flue is now rehabilitated!
During installation, FITFIRE® follows and adapts to every surface imperfection, restoring a new monolithic flue without joints or points where leaks could form.

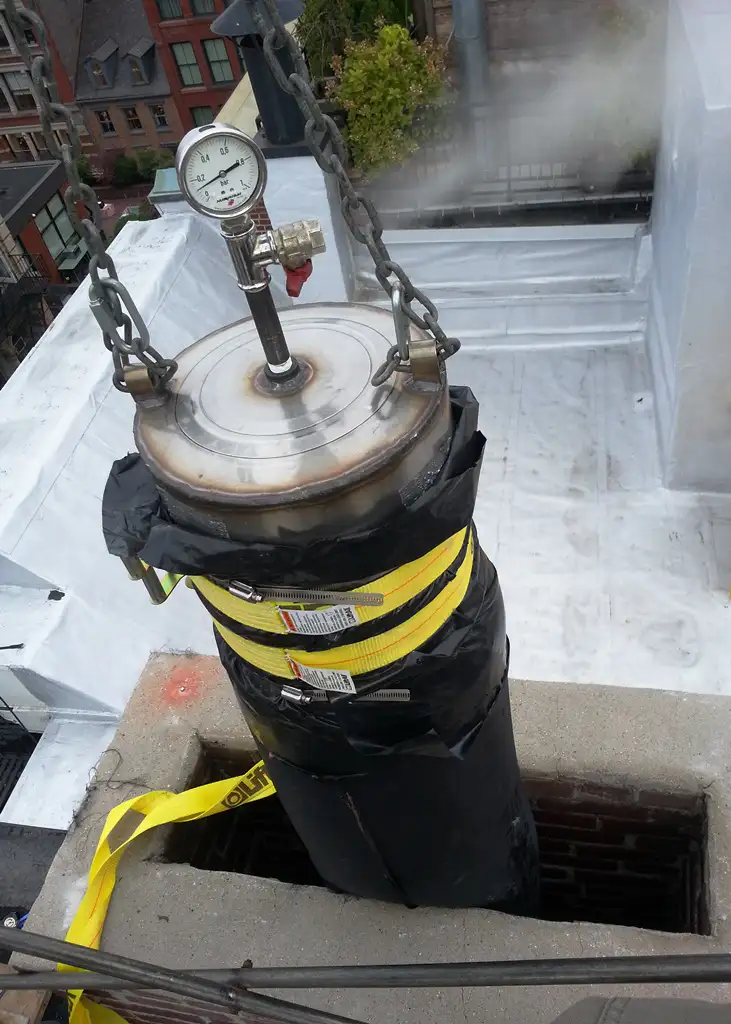

Specifically, the liner is inserted into the duct and inflated with forced air and then steam: in this way, FITFIRE® perfectly shapes itself inside your old flue, like a second skin.

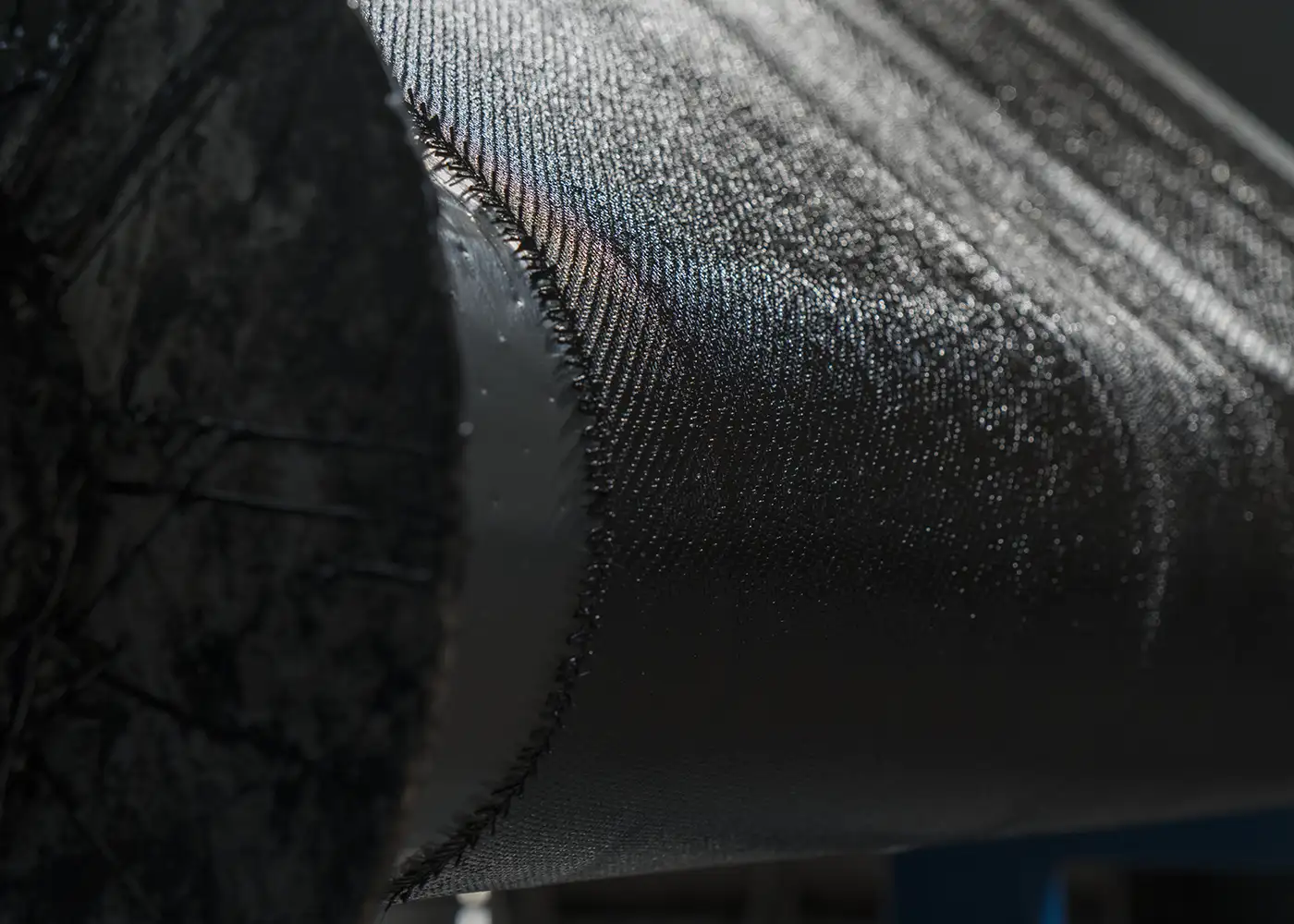

Since it is made with high-tech composite materials, this solution developed in Beca Engineering laboratories can adapt to all flues, creating a new duct inside them with perfect sealing against fumes and heat.
Contact us now to request a supply.
